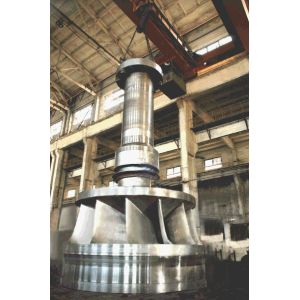

Medium / larger Francis Hydro Turbine/water turbine with Synchro Generator For Hydropower Project

Description:

The Francis turbine is mostly suitable for hydropower stations with medium or high head from 10m to 300m. They are in both vertical or horizontal shaft arrangement and could be vastly selected by the hydraulic power stations.

lt's feature is that the water flow enters the runner inward in a radial direction, changes direction gradually and then passes out axially. Francis turbine is characterized by reliable operation, simple construction and high efficiency, etc.

Normally, we adopt the horizontal Francis with capacity below 5MW, runner diameter below 90 cm. And the vertical Francis with capacity below 20MW.

Applications:

1. Water head: from 10 m - 300 m

2. Power: 100kw -30000KW

3. Frequency: 50/ 60hz

4. Generator Output voltage: 0.4KV, 6.3KV, or 10.5KV AC three-phase,

Francis turbines may be designed for a wide range of heads and flows. This, along with their high efficiency, has made them the most widely used turbine in the world. Francis type units cover a head range from 20 to 300 meters (100 to 984 feet), Large Francis turbines are individually designed for each site to operate at the highest possible efficiency, typically over 90%

Normally, Medium size and larger Francis turbines are most often arranged with a vertical shaft, Small Francis turbine always arranged with horizontal shaft, but it is not absolute.

If you are interested in the Francis turbine, you should send some key parameters (such as net head, flow discharge, unit number, frequency, voltage) in inquiry.

Specifications:

Competitive Advantage:

HYDROTU is the complete Chinese hydropower equipment supply, consulting and engineering design venture in the field of hydropower equipment. We provide the high quality Chinese hydropower equipment with advanced technologies and integrated services to meet the global hydropower markets.

With our Integrated Services concept, we provide you with customized support from project planning through implementation to plant commissioning and service. Our principle: Customer’s project is our project , customer’s success is our success.

HYDROTU covers the services, complete equipment supply, economic solution of the global hydropower projects and aims to be the best global supplier of hydropower equipment as well as the best integrated services provider on the hydropower markets.

HYDROTU are the complete Chinese hydropower equipment provider, consulting and engineering design venture in the field of hydropower equipment. We provide the high quality Chinese hydropower equipment with advanced technologies and integrated services to meet the global hydropower markets.

Hangzhou HydroTu Engineering Co. Ltd covers the services, complete equipment supply, economic solution of the global hydropower projects and aims to be one of the best global supplier of hydropower equipment as well as the best integrated services provider on the hydropower markets.

Already Running HYDROTU's Hydropower Project All Over the World

1. Already Running Hydrotu's hydropower Project Partial 1.pdf

2. Already Running Hydrotu's Hydropower project Partial 2.pdf

3. Already Running Hydrotu's Hydropower project Partial 3.pdf

Reference Layout Drawing of All Kinds of Hydropower Plant:

please visit our another website to download:

http://www.hydropower.com.cn/photosdrawings.asp

           Main Reference List of Hydropower Project worldwide By Hydrotu

    (V-vertical;  H-Horizontal;  D1-diameter;  Hr- water head;  Qr- rated flow;  n-Speed)
